A wooden garage from Passmores is attractive to look at, environmentally responsible and excellent value for money.

Our traditional free standing wooden garages are available in 30 standard sizes from 4.8m x 3.0m (16' x 10') to 7.2m x 7.2m (24' x 24') so there's bound to be a building that's right for you.

Every timber garage that we manufacture can be specified with a 22° pitch boarded and felted roof or with a steeper pitch to suit conventional tiles or slates. Typical roof pitch for slates and interlocking concrete tiles is 25°- 30° and 35° for plain tiles (maximum pitch on 7.2m (24') span is 30°).

For something a bit out of the ordinary please email us a sketch of your requirements and we will be delighted to provide a quotation.

For help and advice on designing the right garage for you please call us on 01634 290033.

CHOOSE FROM A WIDE RANGE OF TIMBER GARAGE STYLES AND SIZES

Tiled Roof Garages

Tiled Roof Garages

Our garages ready for tiling are of the highest quality around and can be finished with a conventional tile or slate to match your home.

6.0m x 3.6m (20' x 12') single Garage

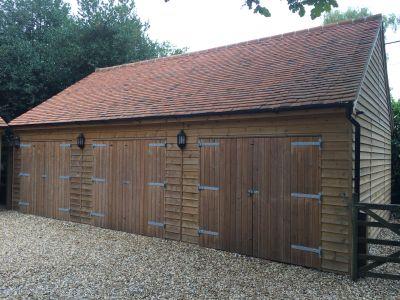

9.0m x 5.4m (30' x 18') triple Garage

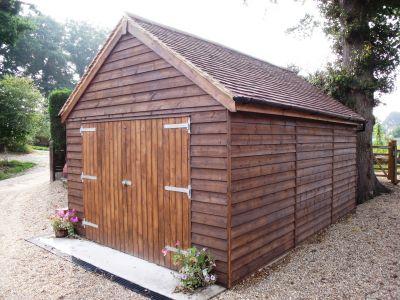

5.4m x 3.6m (18' x 12') single Garage

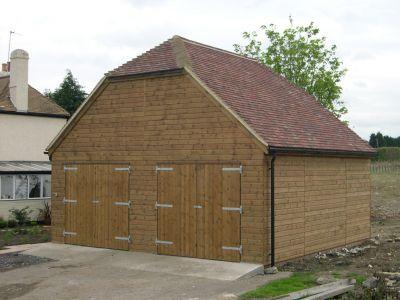

6.0m x 6.0m (20' x 20') double Garage
DOWNLOAD Price List
DOWNLOAD Price List
DOWNLOAD Brochure
DOWNLOAD Brochure
VIEW Gallery
VIEW Gallery
PRICE Calculator Tool
PRICE Calculator Tool

Single Garages have 2.10m eaves height and are constructed from 3 x 2 CLS framework, double Garages have 2.30m eaves height (2.40m when Garage doors are specified in a side wall elevation) and are constructed from 4 x 2 CLS framework. Some wall panels will be diagonally braced or sheathed in 9mm osb for additional strength.

Choose from 19 x 125 planed shiplap or 2 ex. 32 x 150 sawn featheredged weatherboard cladding. Both are machined from joinery grade Scandinavian Redwood timber to Passmores pattern with deep rebate and pressure treated for a long life with low maintenance.

Standard roof pitch is 35 degrees and this suits most tiles or slates however you may choose any roof pitch from 22 degrees to 35 degrees to suit your individual circumstances.

Garages are supplied with 2.135m wide x 1.98m high (7' x 6'6") heavy duty side hung timber doors, constructed from 25 x 125 (1" x 5") pressure treated tgv and 38 x 150 (1½" x 6") ledges and braces. Doors are hung on 3 no. 450 (18") galvanised hook and band hinges and fitted with door retainers, turn buttons, drop bolts and a heavy duty hasp and staple. Wider timber doors and metal up and over doors are also available.

Garages may be customised by adding personal doors and windows - please see our price list for all the options.

Passmores offer a tiling service within 100 mile radius of our factory in Kent and we will be delighted to quote to supply and fit natural slates, fibre cement slates, interlocking concrete tiles or plain tiles upon request.

A Passmore building clad in sawn featheredge weatherboard, usually stained dark brown or black and under a 35 degree pitch plain tile roof, frequently provides a solution for garaging within the grounds of a listed building.

Why not try our Timber Garage Calculator and design your perfect building alternatively please contact us on 01634 290033 to discuss your requirements.

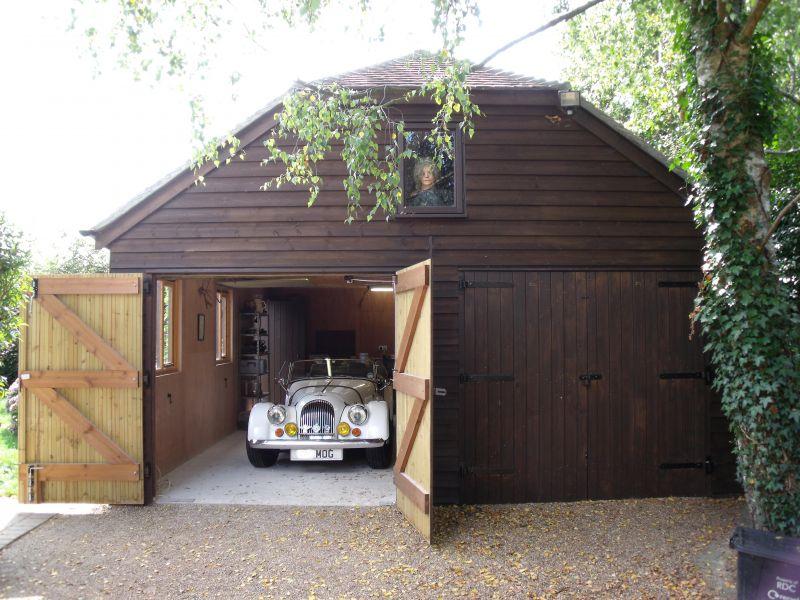

If space on site is limited it is possible to utilise some of the roof by incorporating a 2 post lift. Under these circumstances the roof pitch will need to be 35 degrees and Garage door openings are positioned in the side wall elevation - Please see below for details.

Felt Roof Garages

Felt Roof Garages

Our felt roof Garages are of the highest quality available and represent excellent value for money.

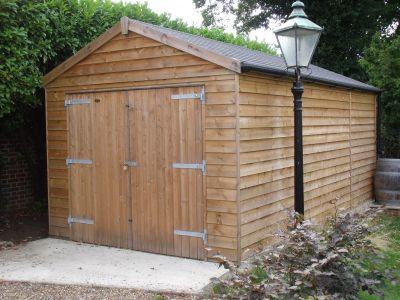

6.0m x 3.0m (20' x 10') single Garage

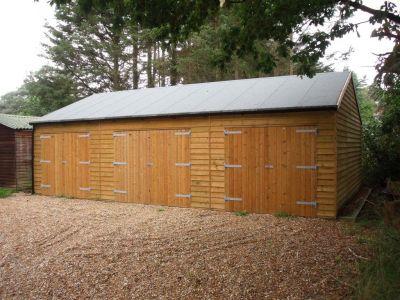

9.0m x 6.0m (30' x 20') triple Garage

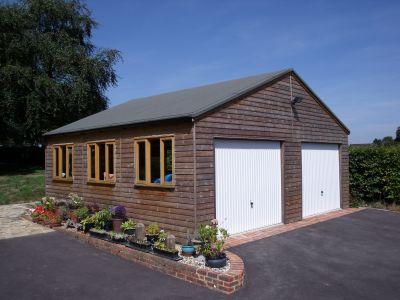

7.2m x 6.6m (24' x 22') double Garage

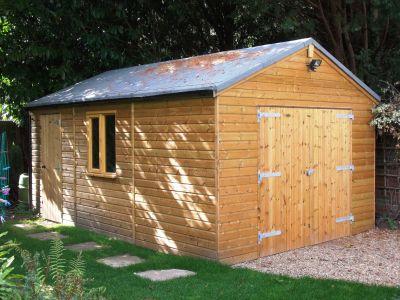

5.4m x 3.6m (18' x 12') single Garage
DOWNLOAD Price List
DOWNLOAD Price List
DOWNLOAD Brochure
DOWNLOAD Brochure
VIEW Gallery
VIEW Gallery
PRICE Calculator Tool
PRICE Calculator Tool

Single Garages have 2.10m eaves height and are constructed from 3 x 2 CLS framework, double Garages have 2.30m eaves height (2.40m when Garage doors are specified in a side wall elevation) and are constructed from 4 x 2 CLS framework. Some wall panels will be diagonally braced or sheathed in 9mm osb for additional strength.

Choose from 19 x 125 planed shiplap or 2 ex. 32 x 150 sawn featheredged weatherboard cladding. Both are machined from joinery grade Scandinavian Redwood timber to Passmores pattern with deep rebate and pressure treated for a long life with low maintenance.

Our roof structure is demonstrably better than the majority of our competitors. Instead of widely spaced trusses and lightweight corrugated roof sheets we use house specification trusses spaced at 0.6m (2') supporting a 15mm osb roof deck. This roof is so strong that PV solar panels can be fitted on top without the need for any modifications.

Standard roof finish is a high performance Ruberoid Challenger polyester 180 green mineral felt. Optional upgrades include Welsh grey mineral felt tiles or a multi layer felt roof built up in hot bitumen.

Garages are supplied with 2.135m wide x 1.98m high (7' x 6'6") heavy duty side hung timber doors, constructed from 25 x 125 (1" x 5") pressure treated tgv and 38 x 150 (1½" x 6") ledges and braces. Doors are hung on 3 no. 450 (18") galvanised hook and band hinges and fitted with door retainers, turn buttons, drop bolts and a heavy duty hasp and staple. Wider timber doors and metal up and over doors are also available.

Garages may be customised by adding personal doors and windows - please see our price list for all the options.

Why not try our Timber Garage Calculator and design your perfect building alternatively please contact us on 01634 290033 to discuss your requirements.

Frequently Asked Questions

This will usually depend on the size, height and location of the proposed new building.

If you are positioning the building close to a boundary or in front of the building line of your home when viewed from the road, then planning consent is usually required.

If the building is to be behind the house, more than 2.0m from a boundary and provided the ridge height is less than 4.0m, then you may not need permission, assuming it is for non business use. Most garden sheds and chalets therefore do not need local authority permission.

However, if you live in a listed property or within a conservation area then planning permission is nearly always required.

The Government Planning Portal www.planningportal.gov.uk contains a wealth of additional information and includes an interactive guide covering most circumstances.

We have over 35 buildings on display in our showground village in Strood, Kent. As well as a full range of Garden Buildings we also display examples of single and double Garages, Carriage Houses, Open Barns, Equestrian buildings and a Club Range with verandah.

Our opening times are Monday - Friday 9.00am - 5.30pm and Saturday 9.00am - 1.00pm. Informed staff are always on hand to answer any questions and offer advice.

If you are interested in viewing a Garage, Carriage House, Club Range or Equestrian building and would prefer not to travel to Kent we may be able to find you a suitable viewing address in your area, in which case please contact us on 01634 290033 with your details.

For Garden Buildings i.e. Sheds, Chalets and Workshops, delivery is free to postcode areas ME, DA, CT, TN, SS, RM and BR and we offer an erection service in these areas. For delivery outside these postcode areas please refer to the Delivery Map.

We deliver Garages, Carriage Houses, Open Barns, Club Range and Equestrian buildings throughout the UK. Delivery is free to most destinations in the South East and outside this area a scaled charge applies depending on your distance from us (see Delivery Map). We offer an erection service in Zones 1, 2 & 3 with published prices for zones 1 & 2 and prices on application for zone 3.

Goods delivered within the mainland UK carry a 12 month warranty against faulty materials or workmanship.

Normally any defect will show in the first few months of the buildings life as it settles onto its foundation.
